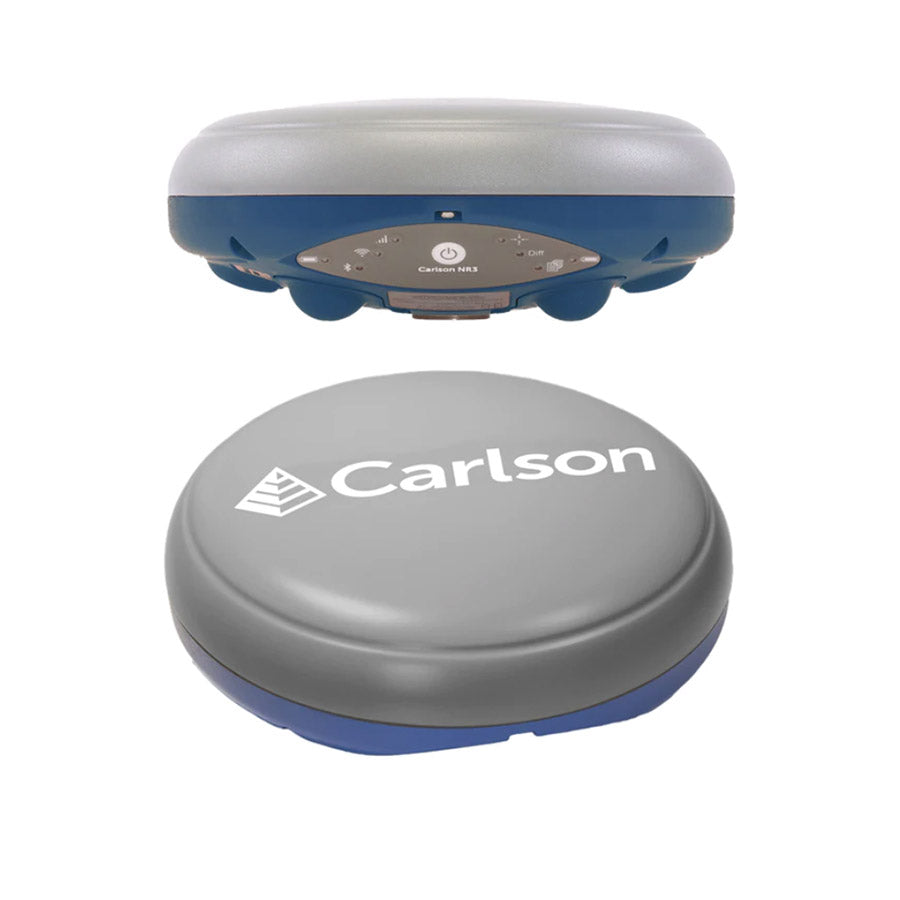

CARLSON NR3 GNSS Smart Antenna

CARLSON NR3 GNSS Smart Antenna

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out

The Carlson NR3 is a compact GNSS Smart Antenna designed for Network Rover applications. The NR3 and a prism make a light weight survey pole assembly to utilize SurvCE/PC with Hybrid+ for simultaneous GNSS and Robotic Total Station surveys.

The NR3 utilizes 4 constellations to produce reliable GNSS RTK, with triple-frequency tracking on GPS, GLONASS and Galileo. The solution incorporates multipath and ionospheric detection algorithms to maintain accuracy, while exhibiting stable satellite tracking during shocks or vibration. The lightweight NR3 receiver may be used as a Base or Rover.

The NR3 has an integrated 4G LTE cellular modem, Wi-Fi and Bluetooth for modern wireless capabilities.

Carlson’s Listen-Listen service allows Base/Rover operation via the cellular modem for better correction transmission ranges compared to traditional terrestrial UHF radios.


GNSS Receiver
Satellite Tracking: GPS: L1, L2, L5 | GLONASS: L1, L2, L3 | Galileo1: E1, E5a, E5b, AltBoc | BeiDou1: B1, B2 | SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM (L1, L5) | IRNSS1: L5 | QZSS: L1, L2, L5
Channels: 448
Update Rates: RTK Positions 10 Hz, Measurements 20 Hz

Time To First Fix:
Fixed RTK: <7 s
Cold Start:9 <55 s
Warm Start:10 <30 s
Re-acquisition: avg. 1 s

Connectors I/O: 1 x 9-pin Lemo, USB, TCP/IP with 2 x Serial Ports, 1 x High Speed Serial Port, Power
Wi-Fi: 802.11 b/g/n
Bluetooth: 2.1 + EDR/4.0
Cellular: 4G LTE Cat1 (band 2,4,5,12,17), 3G UMTS/HSPA (850/900/1900/2100),2G QuadBand GPRS/EDGE”

Battery: 2 x 3.6 V, 3400 mAh Li-Ion
Battery Life:12 6 hours, continuous with hot-swap
External Power:3 9 to 30 VDC

Memory: 16 GB Internal

Operating Temperature:13 -30 °C to +75 °C (-22 °F to 167 °F)
Storage Temperature: -40 °C to +80 °C (-40 °F to 17 °F)
Waterproof / Dustproof: IP67
Certification: CE, FCC Class B Part 1
Shock / Drop: 2 m pole drop on concrete floor

Size: 167 D x 69 H mm (6.5 D x 2.7 H in)
Weight: <.820 kg (1.8 lbs)
