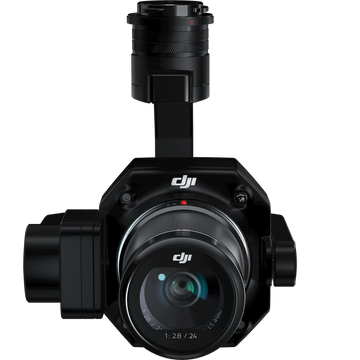

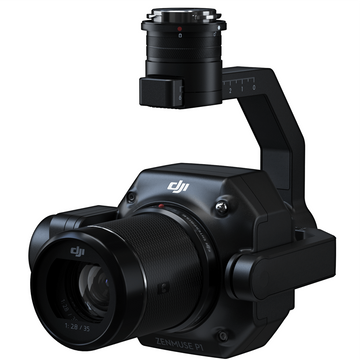

ZENMUSE P1

EFFICIENCY THROUGH FLEXIBLE FULL-FRAME PHOTOGRAMMETRY

THE NEW BENCHMARK FOR AERIAL SURVEYING

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

Accuracy without GCPs

3 cm horizontally / 5 cm vertically ^[1]

High Efficiency
3 km² covered in a single flight ^[2]

45 MP Full-frame Sensor

3-axis Stabilized Gimbal
Smart Oblique Capture

Global Mechanical Shutter^[3]
Shutter Speed 1/2000 Seconds

TimeSync 2.0 - synchronization
at the microsecond level

YOUR GO-TO TOOL FOR AERIAL PHOTOGRAMMETRY

EXTRAORDINARY EFFICIENCY

The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km²^[2] in a single flight.

REMARKABLE ACCURACY

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.

ROBUST VERSATILITY

Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

EFFICIENCY TO COVER IT ALL

FULL-FRAME CAMERA

- 45MP Full-frame Sensor
- 4.4μm Pixel Size
- Low-noise, high sensitivity imaging extends daily operational time
- Take a photo every 0.7 s during the flight
- TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

FLEXIBILITY TO CAPTURE IT ALL

MULTIPLE FIXED-FOCUS LENS OPTIONS

- Global Mechanical Shutter^[3], Shutter Speed 1/2000 Seconds
- Sends the median exposure pulse in microseconds
- Supports 24/35/50mm lenses with DJI DL mounts

24 mm

35 mm

50 mm

WORK SMART, WORK FASTSMART OBLIQUE CAPTURE

Cover 7.5 km² ^[4] in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20%^[5] to 50%^[6].

SMART DATA MANAGEMENT

Your mission data management - streamlined.

Mission result files are automatically associated with the Mission Name and Mission Time.

A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.

The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.

FIELDWORK REPORT ^[7]

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

A MISSION MODE FOR ANY SCENARIO2D Orthomosaic Mission

3D Oblique Mission

Detailed Modeling Mission

Real-time Mapping Mission

Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.

APPLICATION SCENARIOS

TOPOGRAPHIC MAPPING

Capture data that meet the 1:500 scale accuracy requirements without GCPs.

Learn more

CADASTRAL SURVEYING

Quickly generate centimeter-level accurate 3D reality models.

Learn more

AEC AND SURVEYING

Manage the full project lifecycle with 2D and 3D drone data.

Learn more

NATURAL RESOURCE MANAGEMENT

Measure, classify, or determine the ownership of water bodies and forests.

Learn more

GEOLOGICAL INVESTIGATION

Safely gather millimeter-level accurate aerial data of geological hazard sites.

Learn more

DISASTER SITE MODELING

Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.

Learn more

SPECIFICATIONS

Category	Item	Spec
General	Weight	Zenmuse H20: 678±5 g Zenmuse H20T: 828±5 g
	Dimensions	Zenmuse H20: 150×114×151mm Zenmuse H20T: 167×135×161mm
	Ingress Protection Rating	IP44
	Operating Temperature	-20° to 50° C (Temperature Measurement is only available between -10° to 50° C)
	Storage Temperature	-20° to 60° C
	Laser Safety	Class 1M (IEC 60825-1:2014)
	Supported Aircraft	Matrice 300 RTK
Gimbal	Angular Vibration Range	±0.01°
	Mount	Detachable
	Controllable Range	Pitch: -120° to +30° Yaw: ±320°
	Mechanical Range	Pitch: -132.5° to +42.5° Yaw: ±330° Roll: -90° to +60°
Zoom Camera	Sensor	1/1.7" CMOS, 20 MP
	Lens	DFOV: 66.6°-4° Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) Aperture: f/2.8-f/11 (normal)，f/1.6-f/11 (night scene) Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
	Focus Mode	MF/AF-C/AF-S
	Exposure Mode	Auto, Manual
	Exposure Compensation	±3.0 (1/3 increments)
	Metering Mode	Spot metering, Center-weighted metering
	AE LOCK	Supported
	Electronic Shutter Speed	1 ~ 1/8000 s
	ISO Range	Video: 100 - 25600 Photo: 100 - 25600
	Video Resolution	3840x2160@30fps, 1920x1080@30fps
	Video Format	MP4
	Video subtitles	Supported
	Photo Size	5184 × 3888
	Photo Format	JPEG
Wide Camera	Sensor	1/2.3" CMOS, 12 MP
	Lens	DFOV: 82.9° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞
	Exposure Mode	Auto
	Exposure Compensation	±3.0 (1/3 increments)
	Metering Mode	Spot metering, Center-weighted metering
	AE LOCK	Supported
	Shutter Speed	1 ~ 1/8000
	ISO Range	Video: 100 - 25600 Photo: 100 - 25600
	Video Resolution	1920×1080@30fps
	Video Format	MP4
	Video subtitles	Supported
	Photo Size	4056 x 3040
	Photo Format	JPEG
Thermal Camera (Zenmuse H20T)	Sensor	Uncooled VOx Microbolometer
	Lens	DFOV: 40.6° Focal length: 13.5 mm (equivalent: 58 mm) Aperture: f/1.0 Focus: 5 m to ∞
	Digital Zoom	1x, 2x, 4x, 8x
	Video Resolution	640×512 @ 30 Hz
	Video Format	MP4
	Image Resolution	640×512
	Image Format	R-JPEG* (16 bit)
	Pixel Pitch	12 μm
	Spectral Band	8-14 μm
	Sensitivity (NETD)	≤50 mK @ f/1.0
	Temperature Measurement Method	Spot Meter, Area Measurement
	Scene Range	-40 °C to 150 °C (High Gain) -40 °C to 550 °C (Low Gain)
	Temperature alert	Supported
	FFC	Auto/ manual
	Palette	White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser Rangefinder	Wave length	905 nm
	Measurement range	3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
	Measurement accuracy	± (0.2 m + D×0.15%) D is the distance to a vertical surface
Features	Hybrid Optical Zoom	23×
	Max. Zoom	200×
	One Click Capture	One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
	Point to Aim	Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
	High-Res Grid Photo	Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
	Night Scene	Supported (zoom camera)
	Timestamp	Including GPS, date and time
Storage	Supported SD Card	MicroSD card (Max capacity: 128 GB，UHS-1 Speed Grade 3 required)
	Supported File Systems	FAT32 (≤ 32 GB), exFAT (> 32 GB)
	Recommended Micro SD Cards	TOSHIBA EXCERIA PRO 32GB micro SD HC SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC TOSHIBA EXCERIA PRO 64GB micro SD XC SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC SAMSUNG_EVO_128GB_micro SD 3 XC TOSHIBA EXCERIA M303E 32GB micro SD HC TOSHIBA EXCERIA M303E 64GB micro SD XC TOSHIBA EXCERIA M303E 64GB micro SD XC TOSHIBA EXCERIA M303 128GB micro SD XC SAMSUNG_EVO_64GB_micro SD 3 XC
