ZENMUSE H20

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

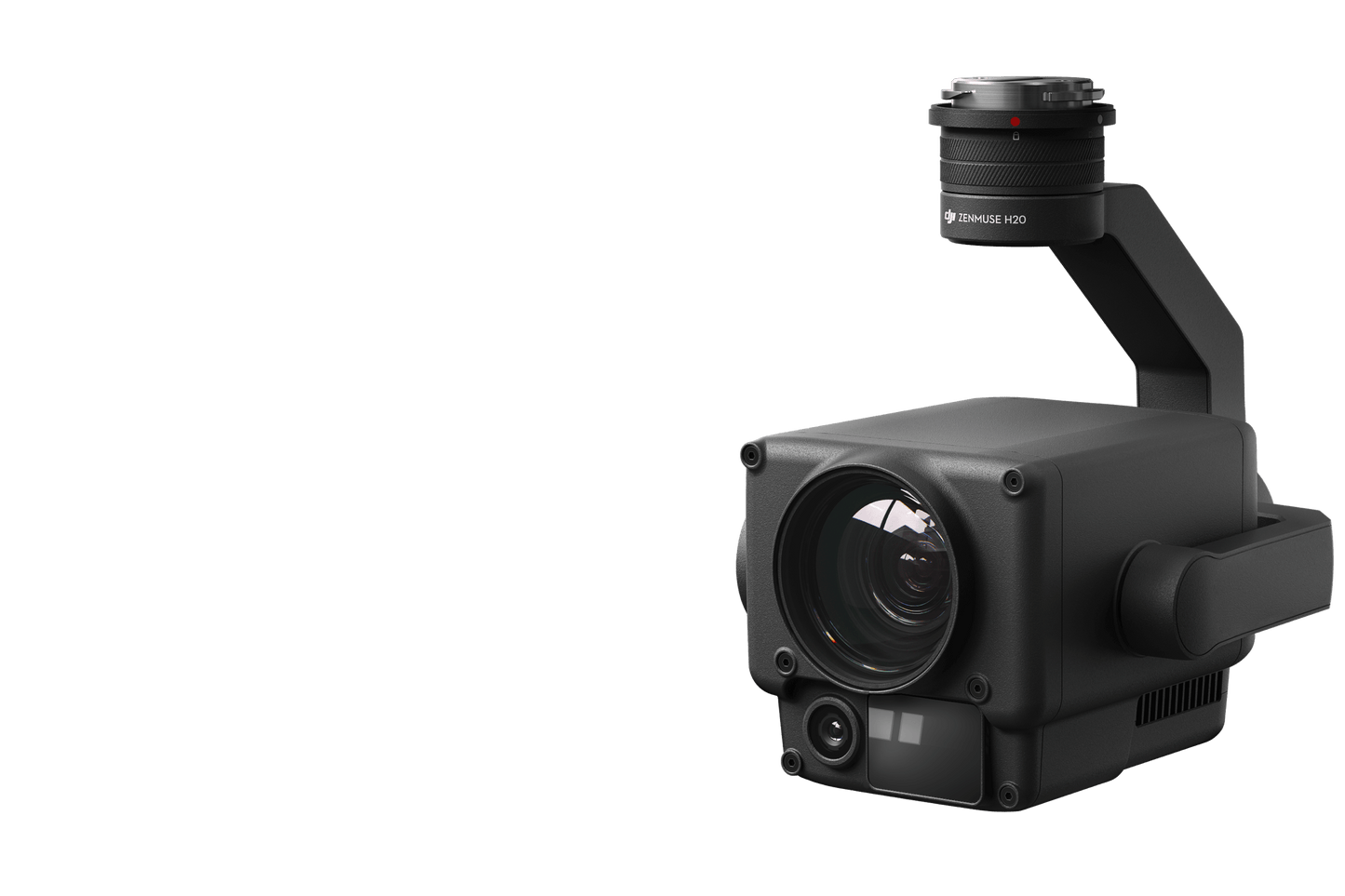

H20 – Triple-Sensor Solution

  • 20 MP Zoom Camera
  • 12 MP Wide Camera
  • 1200 m LRF

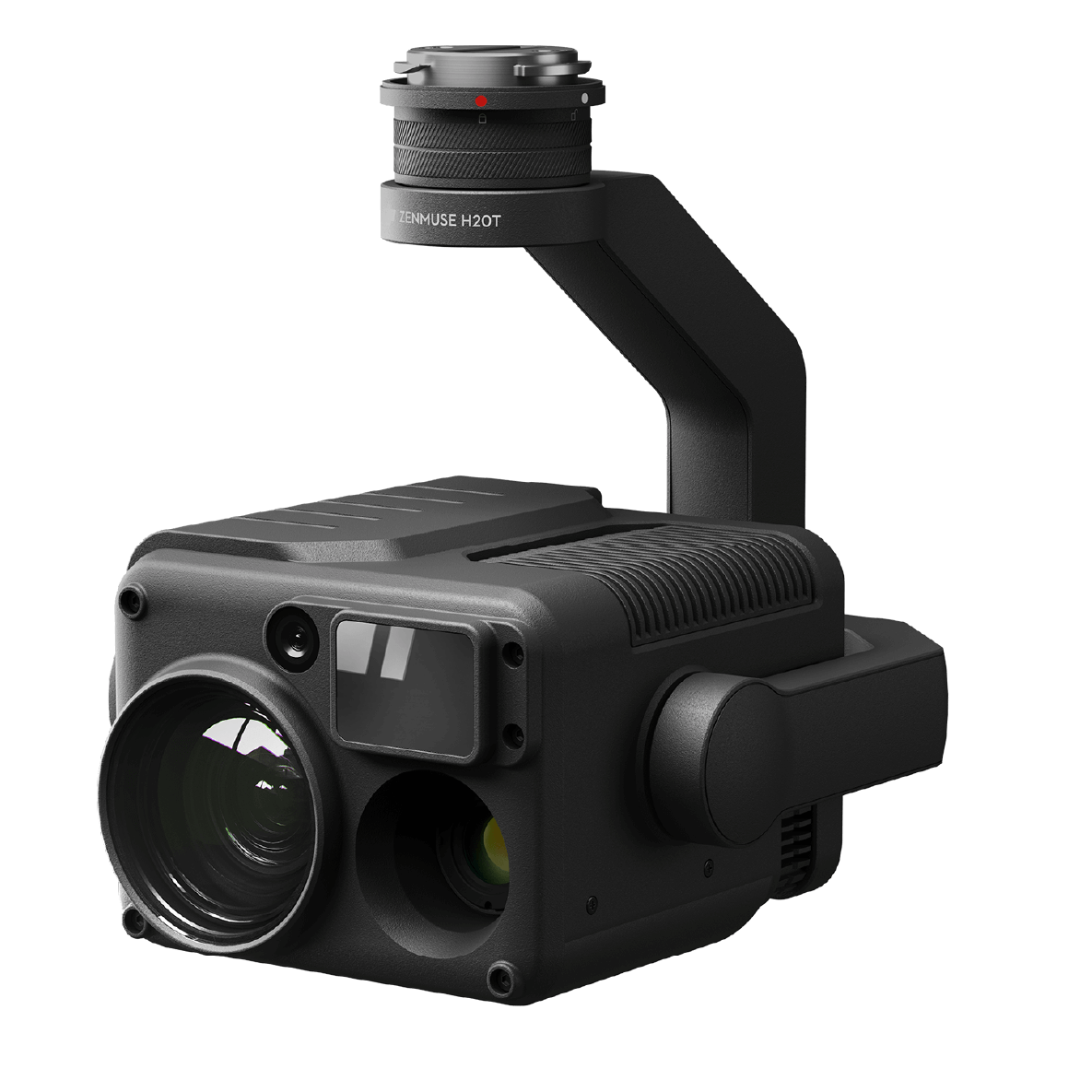

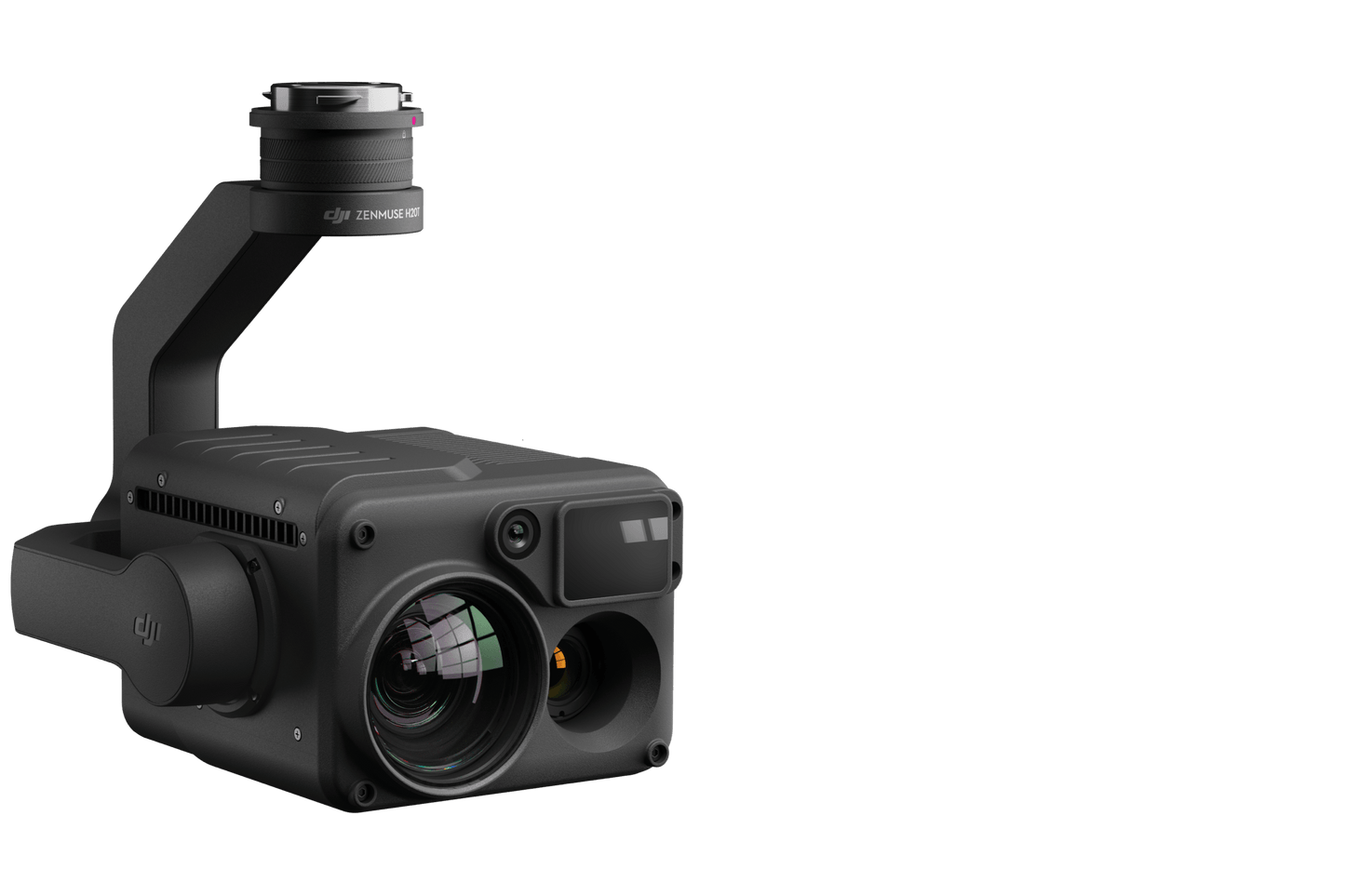

H20T – Quad-Sensor Solution

  • 20 MP Zoom Camera
  • 12 MP Wide Camera
  • 1200 m LRF
  • 640×512 px Radiometric Thermal Camera

Intelligent Features

Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms

Visualize a specific band of temperatures to find what is important.

Color Palettes

Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
