Details:

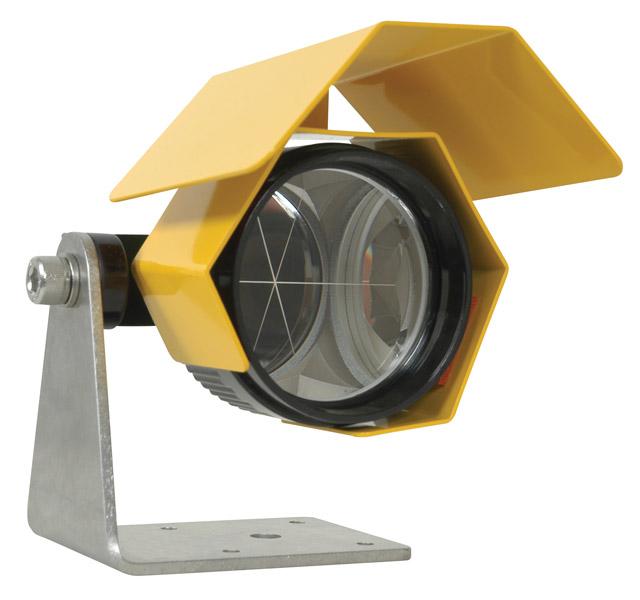

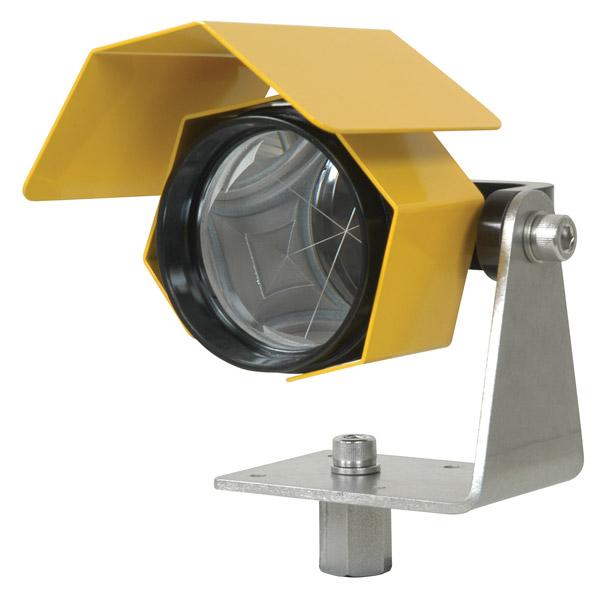

- The Walleye™ Prism System accommodates a full size 62 mm prism for long range applications or when a larger prism is needed
- Rain hood helps keep the prism clean to ensure continual measurements over a long measuring cycle
- Components available individually so you can configure your specific needs
- The flat bottom of the L-Bracket is a large 2.3 x 3.4 inches with five holes for mounting to a variety of surfaces
- Center pivot hole is 3/8-inch (9.5 mm), the four screw holes are 11/64-inch (4.5 mm) OD
- Features include a -40 mm offset, ± 2 mm, ability to pivot in two axes, stainless-steel locking
- The system is compatible with all M20 screw-in type prism canisters
- System weighs 1.55 lb (0.70 kg)
