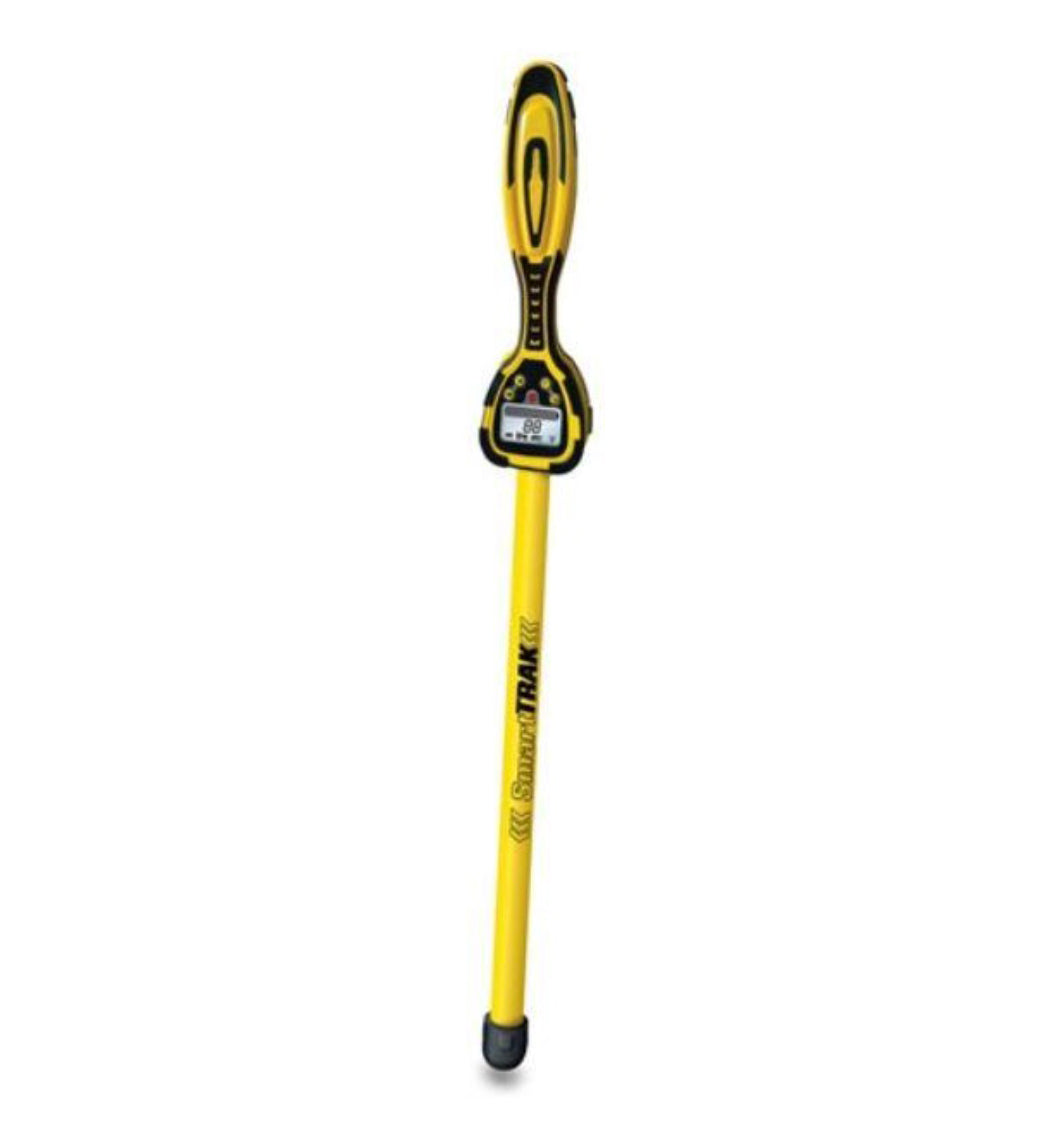

SitePro 59-ST101 – ST101 Smart-TRAK Magnetic Locator

Free

Available Now!

ST101 SmartTRAK™: w/ DIsplay c/w Softcase

Features:

  • The Smart-TRAK is the smart choice for locating manholes, steel covers, septic systems, corner survey markers, cast iron pipes, iron valves, and re-bar.
  • The ST100 series feature one-handed operation with pinpoint accuracy and large visual display.
  • Precision-crafted superior ergonomics and balanced design for one-handed operation
  • Large LCD screen for visual search results 0-99 numeric indicator with signal strength bar graph, North/South polarity indicator, and battery level indicator
  • High-grade waterproof speaker is water resistant and dust proof to ensure years of dependable operation
  • Robust co-molded housing is water resistant and dust proof to ensure years of dependable operation
  • Waterproof tube (IP67) and tip for locating even in the toughest environments and weather conditions

SPECIFICATIONS

Audio Output:

10Hz frequency tone, increases with magnetic field strength

Visual Output:

LCD – Numeric 0 – 99, signal strength bar graph

Gain (Sensitivity):

6 settings

Smart-Search Technology™

No

Modes:

Standard

Power:

Six “AA” alkaline batteries provides 50 hours (intermittent operation)

Operating Temp:

‐13° F to 140° F (‐25° C to 60° C)

Power:

Six “AA” alkaline batteries provides 50 hours (intermittent operation)

Weight:

2.5 lb (1.13kg) with batteries

Environment:

IP54 – plastic housing; IP67 – sensor tube to just below the plastic housing
