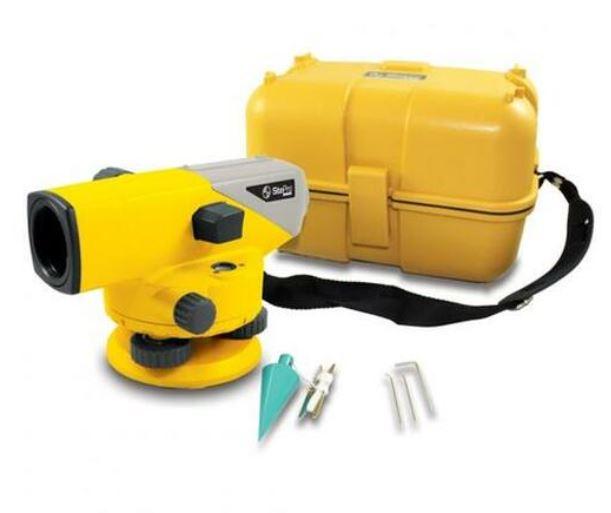

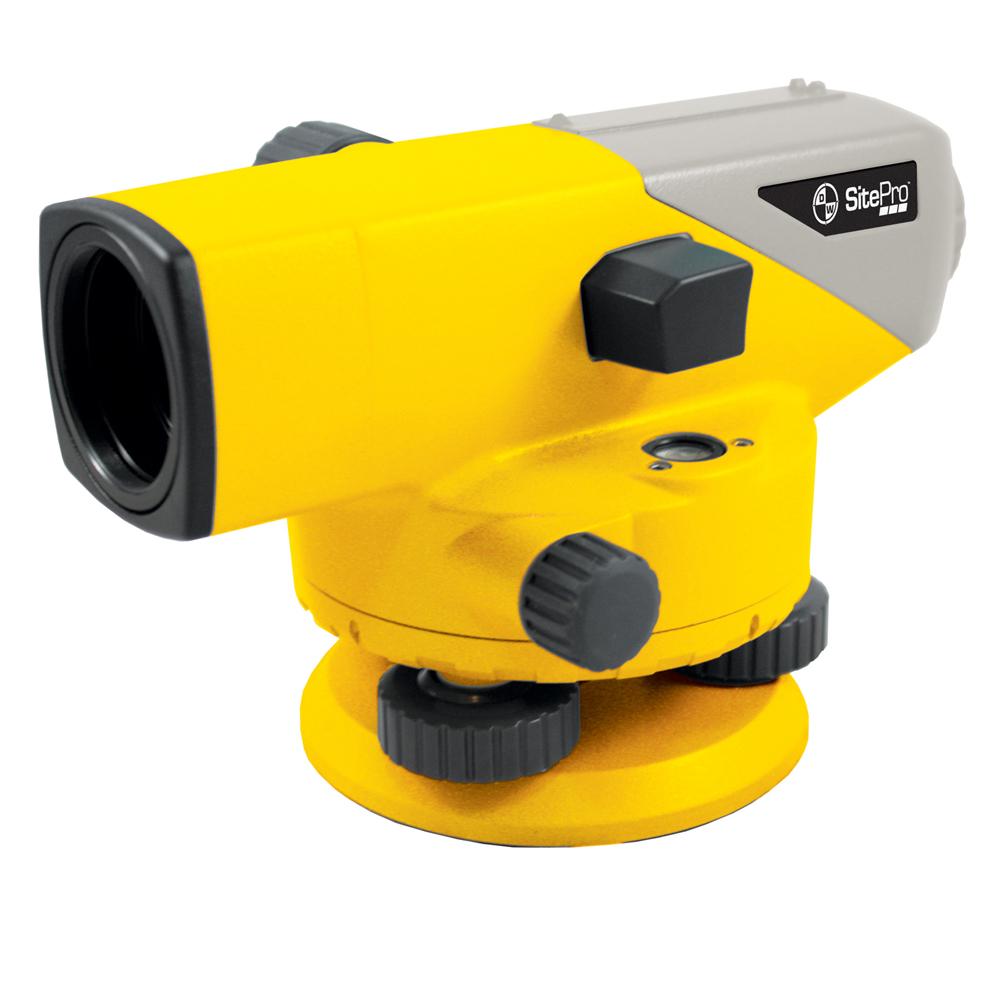

These auto-levels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results.
- Compensator is designed with four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient
- Horizontal and vertical cross hairs with 1:100 stadia lines – measures level, alignment & estimates distance
- Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
- Peep sight to aid in sighting
- Solid leveling metal base with three precision leveling screws provides stability and accuracy in all weather and job site conditions
- 360° Graduated horizontal circle in 1-degree increments for layout applications
- 10’/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up
Specifications:
- Magnification: 24X
- Leveling Accuracy: ±1/16 in at 150 ft (±1.5 mm @ 46 m)
- Working Range: 300 ft (90 m)
- Angular Accuracy: 1°
- Field of View: 1° 25’ or 2.6 ft @100 ft
- Min. Focus Distance: < 1 ft
- Compensator range: +/-15’
- Comp Setting: ±0.5”
- Weight: 3.65 lb (1.6 kg)
