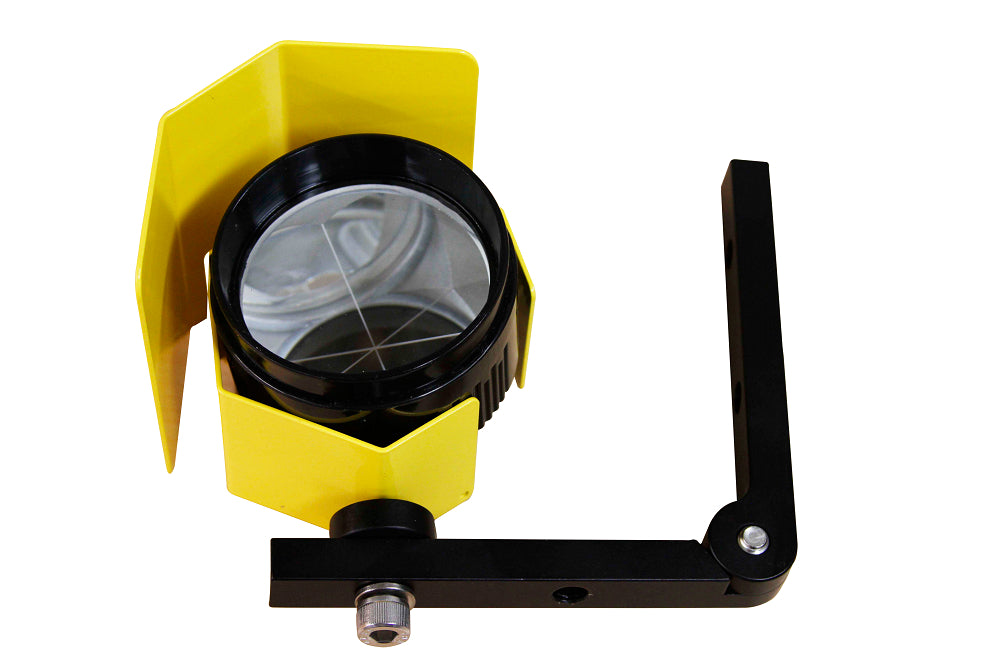

Seco Monitoring Prism – 62 mm

Free

Available Now!

This prism series is ideal for deformation and mining surveys or wherever permanent mounting is needed.

Details:

  • This design makes mounting and pointing easy on uneven surfaces
  • Mounting arm allows tilt up to 240 degrees and prism mount allows 360 degrees rotation
  • The two mounting holes are spaced 1.75″ (44.4mm) apart
  • Mounting holes are 0.328″ ( 8.3mm ) diameter
  • Two prism mounting holes, spaced 1.75″ (44.4mm) apart
  • Pivot and prism mounting bolts are 8MM stainless steel with lock washers 6mm
  • Hex wrench included
  • Rain hood included with 6603-05
  • Prism size: 62 mm
  • Silver coated
  • Weight 1.15lbs (0.52kg)
