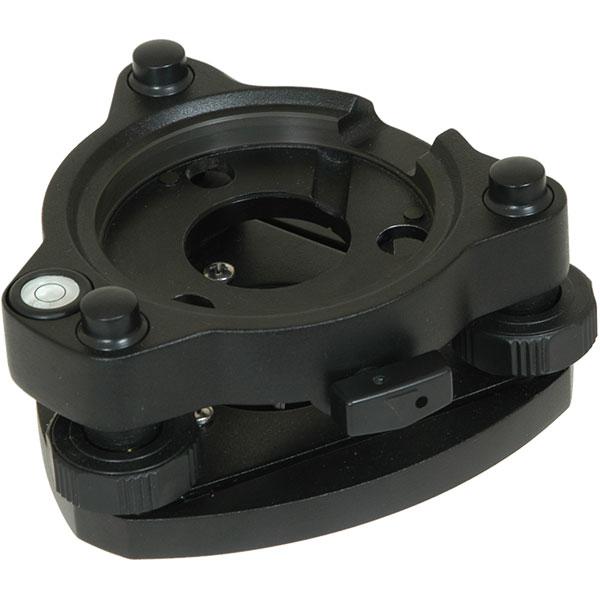

Seco High-Precision Non-Optical Plummet Tribrach

Free

Available Now!

Details:

  • High-precision non-optical plummet tribrach designed to work with all total stations including the S6
  • The error in angle measurement (hysteresis) is under 3 cc (60 Ncm torsion moment and 12 kg vertical load)
  • A center line on each of the leveling screws allows the user to balance the lengths of the leveling screws
  • Features a 5/8 x 11 threaded base plate and 8-minute circular vial
  • Includes the shortest-focus distance of 0.3 m to 15 m and an accuracy of 0.5 mm / 1.5 m
  • The operating temperature for the tribrachs is -20º C to +50º C (-4º F to +122º F)
  • Weighs 1.50 lb (0.70 kg)
