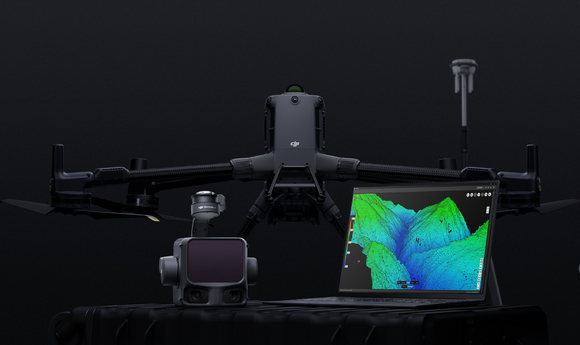

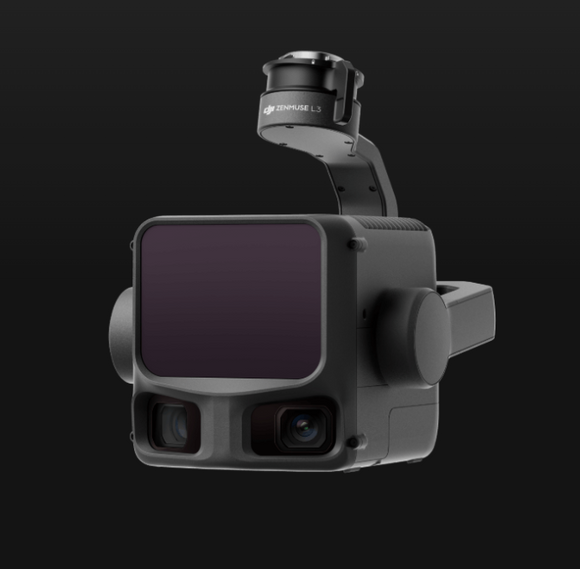

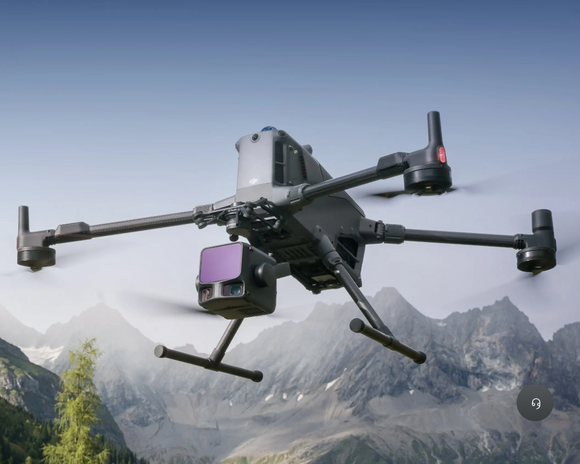

Long-Range Aerial LiDAR for High-Accuracy Surveying & Mapping The DJI Zenmuse L3 is DJI's most advanced aerial LiDAR payload, engineered for professionals who demand exceptional accuracy, efficiency, and reliability. Designed for use with the DJI Matrice 400, the Zenmuse L3 combines a powerful long-range LiDAR sensor, dual 100MP RGB mapping cameras, and an upgraded high-precision positioning system to dramatically improve aerial surveying, topographic mapping, infrastructure inspections, forestry, mining, and construction workflows. Whether you're mapping large construction sites, generating dense point clouds beneath heavy vegetation, or inspecting utility corridors, the Zenmuse L3 delivers professional-grade results with fewer flights and faster project completion.

Built for Surveying Professionals

Every component of the Zenmuse L3 has been designed to maximize productivity in demanding field environments.

Long-Range LiDAR Performance

Capture accurate data from greater distances with DJI's advanced 1535nm LiDAR system, capable of detecting objects up to 950 metres away under challenging conditions. The increased operating range allows surveyors to fly higher while maintaining exceptional data quality, covering more ground with every mission.

Dual 100MP Mapping Cameras

Integrated dual 100MP RGB cameras simultaneously capture high-resolution imagery alongside LiDAR data, enabling users to generate:

• Orthomosaic Maps (DOM)
• Digital Elevation Models (DEM)
• High-resolution 3D models
• Colourized point clouds

The ultra-wide 107° field of view increases coverage while reducing flight time.

Exceptional Accuracy

The upgraded positioning system delivers survey-grade precision with:

• High-precision GNSS positioning
• Factory-calibrated sensors
• Improved IMU performance
• Highly accurate point cloud generation

This makes the Zenmuse L3 ideal for engineering surveys, cadastral mapping, and infrastructure documentation requiring dependable measurements.

Advanced LiDAR Technology

The Zenmuse L3 introduces several key advancements over previous generations.

High Pulse Rate

Supports laser emission rates up to 2 million pulses per second, producing dense, highly detailed point clouds for complex environments.

Multiple Return Capability

Capture up to 16 returns from a single laser pulse, improving ground detection beneath vegetation and enhancing terrain modelling accuracy.

Small Laser Spot

The narrow laser beam improves object detection, allowing surveyors to accurately capture:

• Power lines
• Utility infrastructure
• Tree branches
• Building edges
• Fine structural details

This results in higher-quality datasets with greater definition.

Why Buy from Horizon Measurements?

When you purchase your DJI Enterprise equipment from Horizon Measurements, you're backed by experienced geomatics professionals who understand real-world surveying applications.

We provide:

• DJI Enterprise Sales
• Expert Product Advice
• System Configuration
• Survey Workflow Consultation
• Product Training
• Technical Support
• Ongoing Service & Maintenance

Whether you're upgrading an existing LiDAR platform or investing in your first enterprise mapping solution, our team can help you select the right equipment for your workflow.
