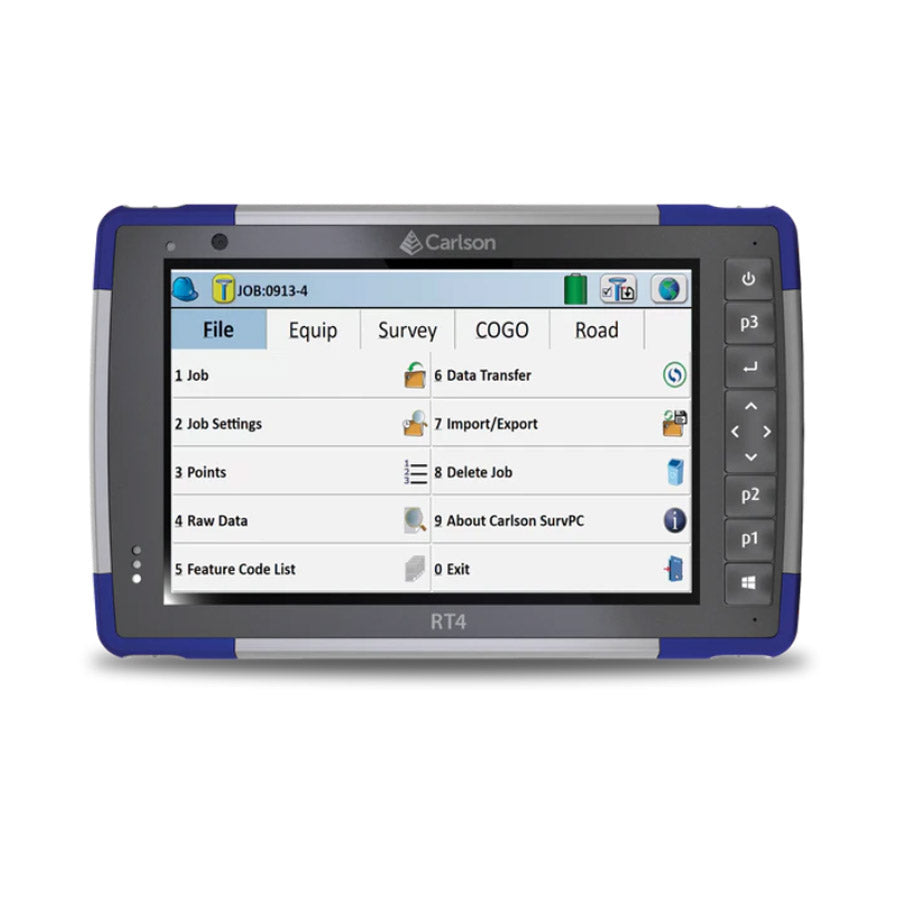

The Carlson RT4 is designed for surveying, stakeout, construction layout, and GIS mapping and is bundled with Carlson SurvPC – the Windows-based data collection program. SurvPC includes the option of running the Esri OEM program for GIS field work. The RT4 can also be used in the office with any Carlson office software. With 8GB of RAM and 128 GB of storage, you’ll have the power to collect and analyze your data faster and more efficiently than ever before.
PORTS • USB 3.0 • 12 VDC power input jack • Docking port connections (Power, USB 2.0, HDMI, & ethernet) •Optional RS-232 9-Pin D-Sub connector with 5VDC power output
BATTERY • Removable Li-Ion battery, 43.2 Whr • Operates 8–10 hours on one charge • Hot-swappable battery, easily changed in field
WIRELESS CONNECTIVITY OPTIONS • Long-range Bluetooth® Smart Ready wireless technology, v5.0 +EDR, Class 1.5, BLE support • Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz • 4G LTE (CELL & GEO/CELL MODELS)
CAMERA • Rear: 8 MP with LED illumination • Front:2MP • Photos embedded with date, time, and GNSS position (GEO/CELL MODEL)
RUGGEDIZATION • IP68 waterproof and dustproof • Operating Temperature: -4 F to 122 F (-20° C to 50° C) • Shockproof: multiple drops from 4’ (1.2–1.5 m) onto concrete
PHYSICAL • Size: 5.40” w x 8.48” Ix 1.36” d (137 x 215 x 35 mm) • Weight: 1.5-2 lbs (680-907 g) depending on battery configuration • Easy-to-grip, impact-absorbing, overmolded bumpers • Lightweight and ergonomic design
WARRANTY • 2-Year Warranty • Service Plans Available
Available models • STANDARD • CELL • GEO/CELL
