Carlson

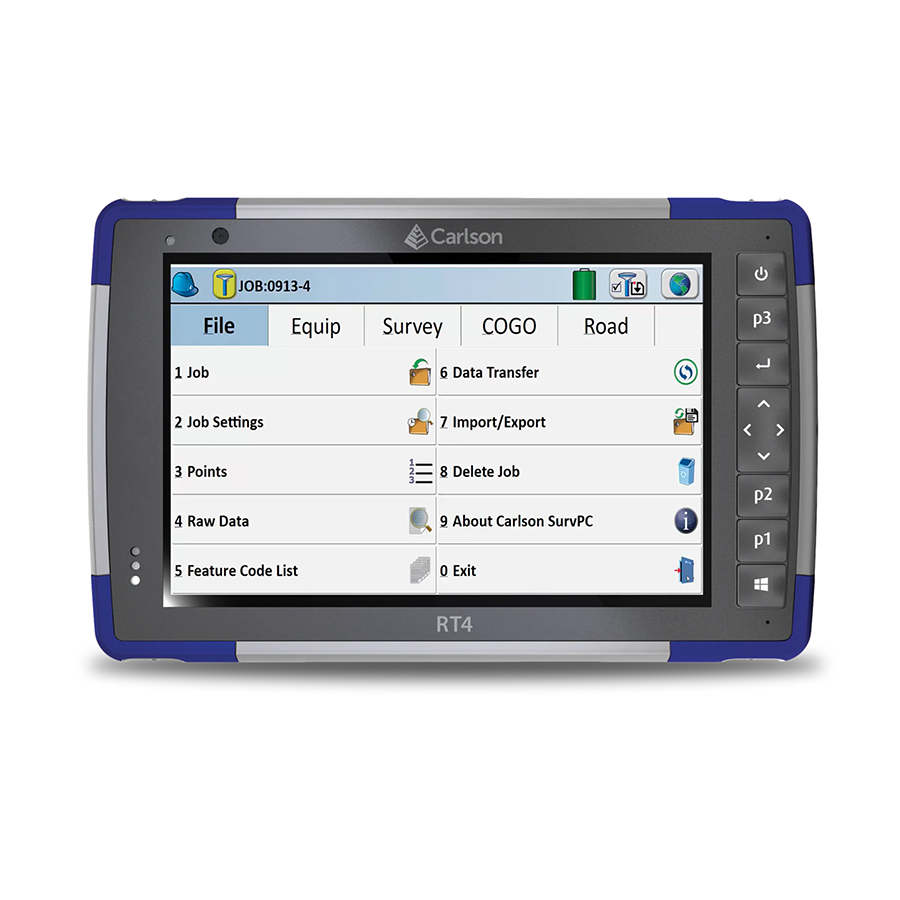

Carlson RT4 Cell WiFi/BT 128GB

Carlson RT4 Cell WiFi/BT 128GB

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
Style

OVERVIEW

The Carlson RT4 is designed for surveying, stakeout, construction layout, and GIS mapping and is bundled with Carlson SurvPC – the Windows-based data collection program. SurvPC includes the option of running the Esri OEM program for GIS field work. The RT4 can also be used in the office with any Carlson office software. With 8GB of RAM and 128 GB of storage, you’ll have the power to collect and analyze your data faster and more efficiently than ever before.



SPECIFICATIONS

PROCESSOR
• Quad-core Intel® Pentium N4200 processor


OPERATING SYSTEM
• Microsoft® Windows 10


MEMORY AND DATA STORAGE
• 8 GB RAM (LPDDR4)
• 128 GB flash storage
• User-accessible MicroSDXC card slot


GRAPHICS
• Intel® HD Graphics


DISPLAY
• Active viewing area: 7” (178 mm)
• Resolution: WXGA (1280 x 800)
• Best-in-class sunlight view-ability
• Automatic screen rotation


TOUCH SCREEN
• Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions


KEYBOARD
• Adjustable LED backlit keys
• Four-way directional navpad
• Windows/home key


PORTS
• USB 3.0
• 12 VDC power input jack
• Docking port connections (Power, USB 2.0, HDMI, & ethernet)
•Optional RS-232 9-Pin D-Sub connector with 5VDC power output


BATTERY
• Removable Li-Ion battery, 43.2 Whr
• Operates 8–10 hours on one charge
• Hot-swappable battery, easily changed in field

WIRELESS CONNECTIVITY OPTIONS
• Long-range Bluetooth® Smart Ready wireless technology, v5.0 +EDR, Class 1.5, BLE support
• Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
• 4G LTE (CELL & GEO/CELL MODELS)

CAMERA
• Rear: 8 MP with LED illumination
• Front:2MP
• Photos embedded with date, time, and GNSS position (GEO/CELL MODEL)

RUGGEDIZATION
• IP68 waterproof and dustproof
• Operating Temperature: -4 F to 122 F (-20° C to 50° C)
• Shockproof: multiple drops from 4’ (1.2–1.5 m) onto concrete

PHYSICAL
• Size: 5.40” w x 8.48” Ix 1.36” d (137 x 215 x 35 mm)
• Weight: 1.5-2 lbs (680-907 g) depending on battery configuration
• Easy-to-grip, impact-absorbing, overmolded bumpers
• Lightweight and ergonomic design

WARRANTY
• 2-Year Warranty
• Service Plans Available

Available models
• STANDARD
• CELL
• GEO/CELL
