Seco

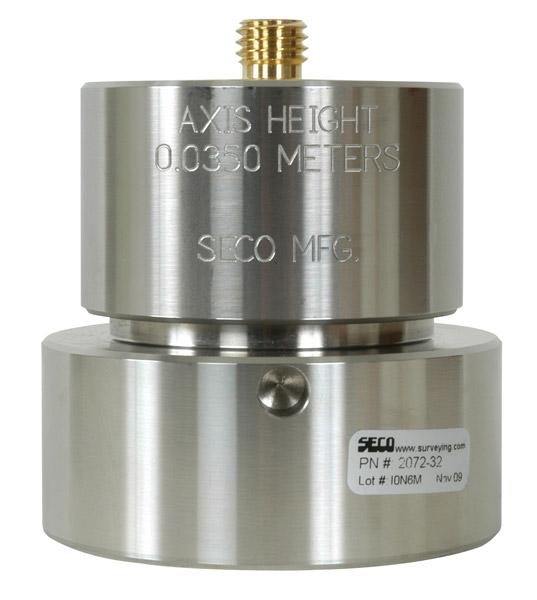

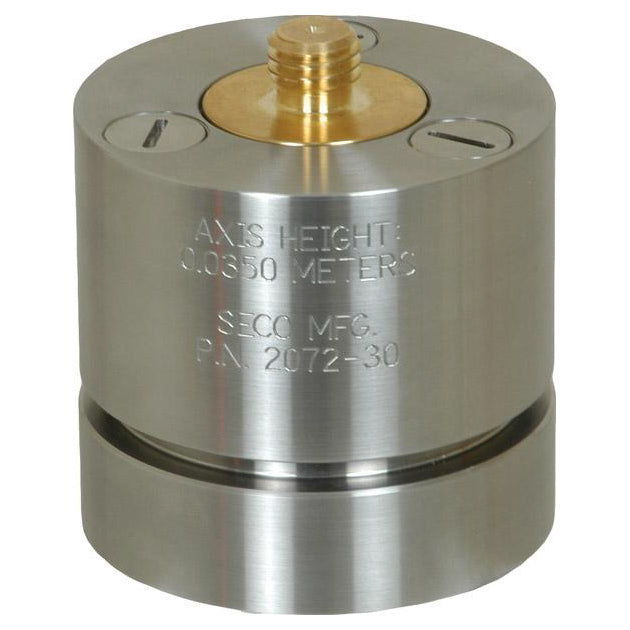

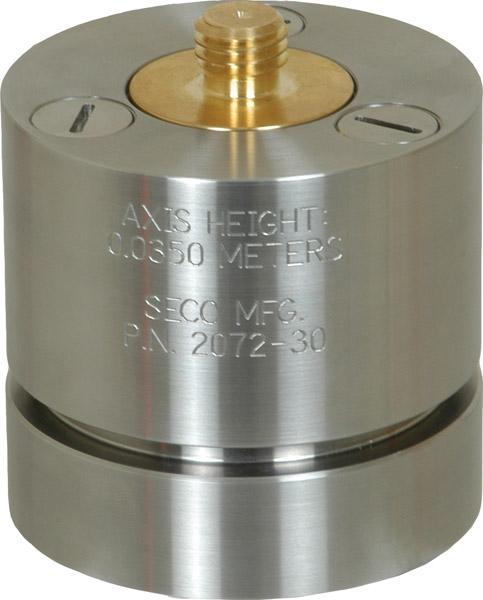

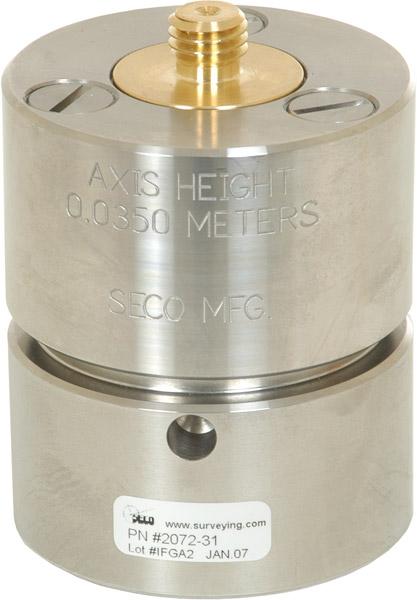

Seco Adjustable Tilt Monument Mount

Seco Adjustable Tilt Monument Mount

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
Size

Details:

  • The adapters have 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)

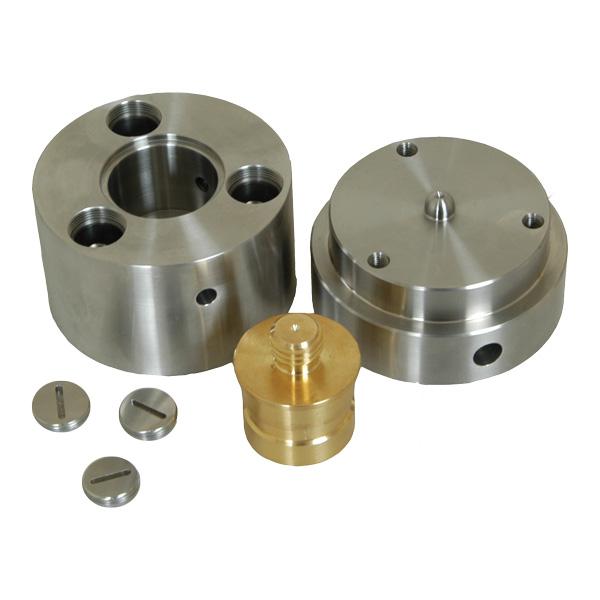

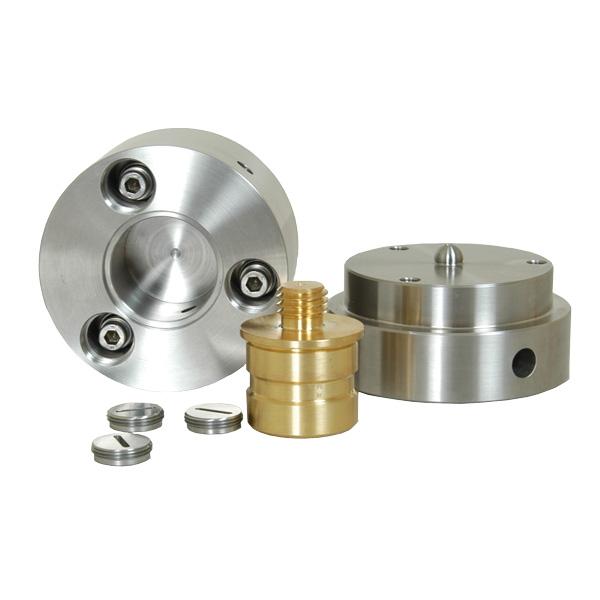

  • Includes a removable brass 5/8 x 11 male stud that is adjustable in azimuth and held in location by two set screws
  • Leveled by three screws with a tilt range +/- 7°
  • The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm)
  • The height below the brass 5/8 stud to the shoulder is 0.463 inches (1.18 cm)
  • The axis height is engraved on the outside of the monuments
