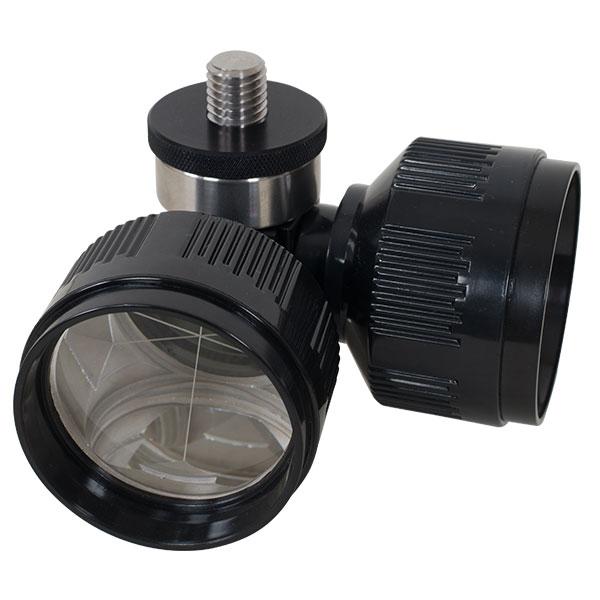

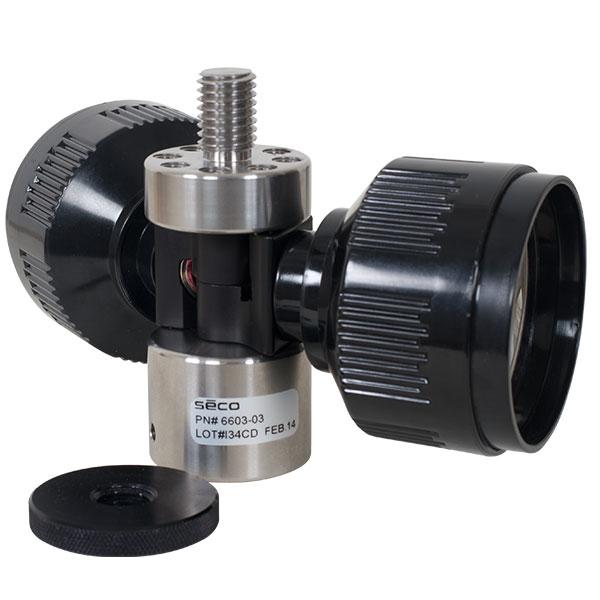

Seco Adjustable Dual Prism

Free

Available Now!

Details:

  • The Adjustable Dual Prism is the newest addition to our 6603-Series for mining, tunneling, monitoring and rail

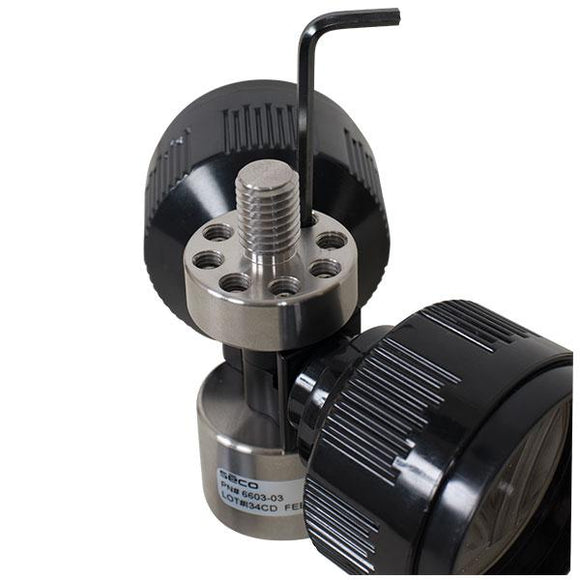

  • Minimal horizontal angle is 84° (Hex tool included)
  • Prism holder is machined from 303 stainless-steel

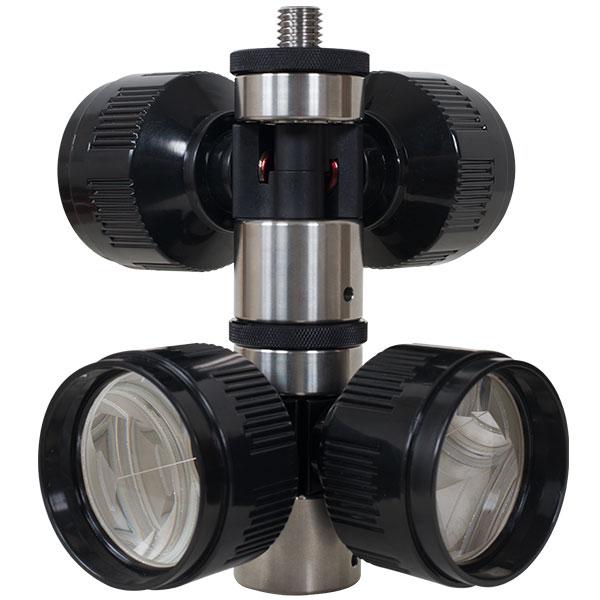

  • Holders can be stacked for more than two prisms or an GNSS Receiver can be connected on the top 5/8 x 11 stud so a GNSS measurement can also be made
  • Compatible with standard surveying 5/8 x 11 accessories
  • Zero prism offset, ±1 mm
  • Includes two 62 mm silver coated, water resistant prisms, accuracy < 2 arc seconds
  • Weighs 2.60 lb (1.18 kg)
