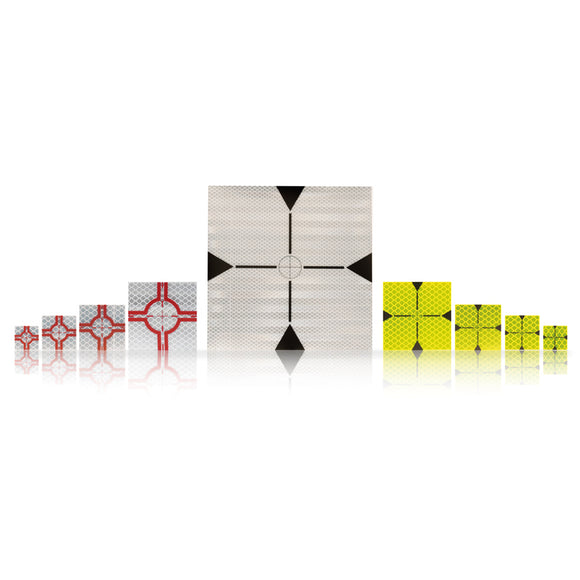

| Dimensions and ranges: | ||
| RSZ2 / RSZ2YE |
Reflective targets 21 x 21 mm -> range approx. 50 m (54,68 yd) |
|
| RSZ3 / RSZ3YE |
Reflective targets 30 x 30 mm -> range approx. 80 m (87,49 yd) |
|
| RSZ4 / RSZ4YE |
Reflective targets 40 x 40 mm -> range approx. 100 m (109,36 yd) |
|
| RSZ6/ RSZ6YE |
Reflective targets 60 x 60 mm -> range approx. 120 m (131,23 yd) |
|
| RSZ22 | Reflective targets 220 x 220 mm -> range approx. 500 m (546,81 yd) | |
|
The ranges are average values and are exceeded by most current measuring instruments. A minimum distance of 10 m is required for some instruments. Our reflective targets are supplied on a foil backing. Removal of the targets from the backing is possible even if wearing gloves! The ranges are dependent on the device and can be adversely affected by weather and environmental conditions. For all distance measurements using a total station, it is recommended that only markers with reflective targets are used!
|
||
