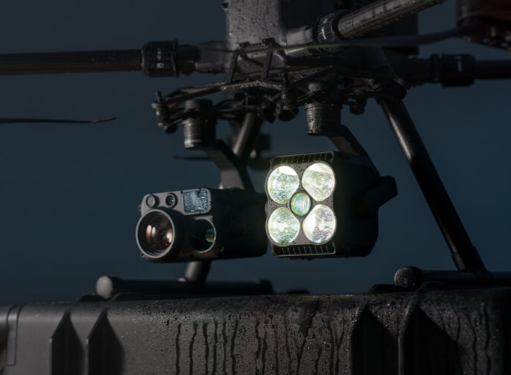

Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.
Low Beam Mode
Provides a 15° field of view (FOV) [2] within a distance of 150 meters [1], covering the illumination range of a camera at 5x zoom or above. [3] This mode is suitable for most short-distance search and inspection needs.
High Beam Mode
Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV) [4] at a distance of 300 meters. [1] It covers the illumination range of a camera at 15x zoom or above, [3] enhancing efficiency in emergency rescue and public safety operations.
Both On Mode
Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. [1] This mode offers maximum illumination coverage for comprehensive situational awareness.
Strobe Mode
Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.
