These auto-levels feature excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results.

Compensator is designed with four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient
Horizontal and vertical cross hairs with 1:100 stadia lines – measures level, alignment & estimates distance
Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
Peep sight to aid in sighting
Solid leveling metal base with three precision leveling screws provides stability and accuracy in all weather and job site conditions
360° Graduated horizontal circle in 1-degree increments for layout applications
10’/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up

Specifications:

Magnification: 24X
Leveling Accuracy: ±1/16 in at 150 ft (±1.5 mm @ 46 m)
Working Range: 300 ft (90 m)
Angular Accuracy: 1°
Field of View: 1° 25’ or 2.6 ft @100 ft
Min. Focus Distance: < 1 ft
Compensator range: +/-15’
Comp Setting: ±0.5”
Weight: 3.65 lb (1.6 kg)

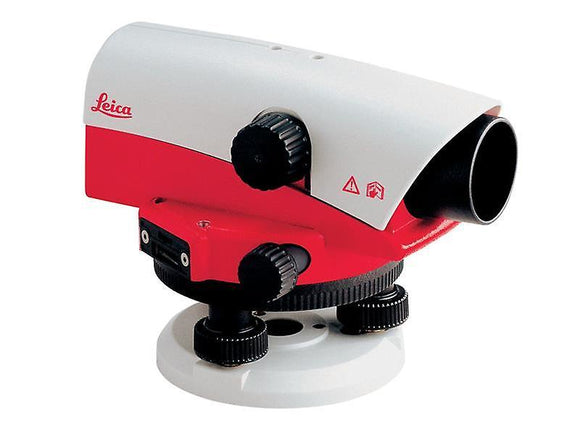

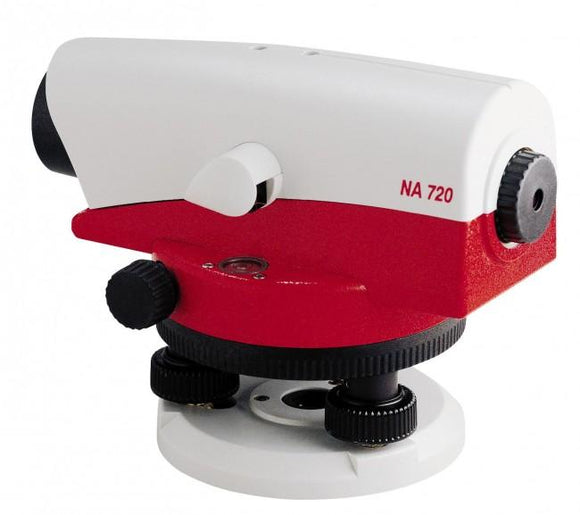

Leica NA720 Automatic Level, 360°

Leica NA720 Automatic Level, 360°
