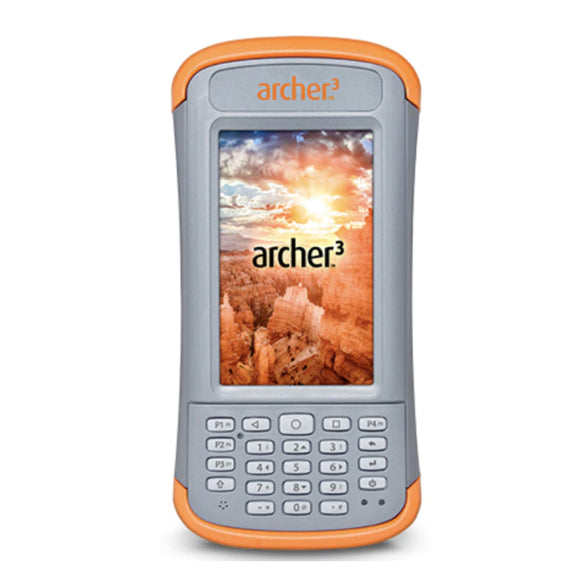

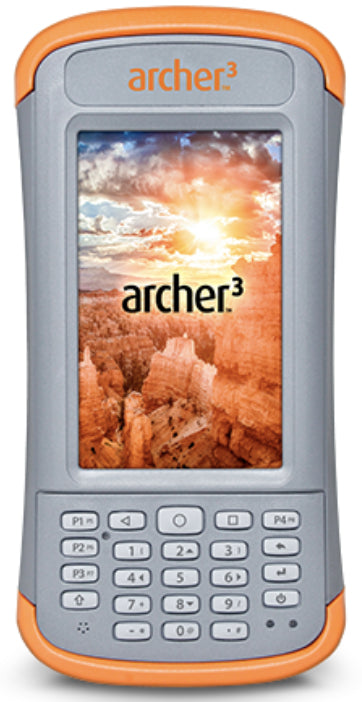

Juniper Archer 3

Juniper Archer 3

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
System
  • Operating system: Android 7.1 AOSP
  • Processor: 1.2GHz ARM Cortex A9 i.MX6
  • Languages: English, French, Spanish, German, Portuguese

Physical
  • Size, Base models: 3.6" w x 7.25" l x 1.5" d (91 mm x 184 mm x 38 mm)
  • Weight: 1.3 lbs (590 g), with battery
  • Durable hardened plastic in a shear-proof and shock-resistant design
  • Strong chemical resistance
  • Comfortable, wide hand strap
  • Easy-to-grip, impact-absorbing bumpers

Battery
  • Intelligent Li-Ion battery 3.6VDC @ 12000mAh, 42.2Whr
  • Operates for up to 20 hours on one charge
  • Charges in 5.5 hours
  • Battery easily changeable in field
  • Optimized for excellent performance in cold temperatures

Display
  • Active viewing area: 4.3" (109 mm)
  • WVGA LCD TFT (640x480)
  • High visibility backlit LCD
  • Portrait or landscape orientation

Touchscreen
  • Projected capacitive touch interface "optically bonded" to display for increased visibility
  • Chemically-strengthened glass
  • Scratch-resistant screen

Keyboard
  • Adjustable LED backlit keys
  • Numeric keypad (8 user-reassignable)
  • OEM configurable/customizable

Juniper Rugged™
  • IP68 waterproof and dustproof (1.4m for 30 min)
  • Operating temperature: -22F to 140F (-30C to 60C)
  • Storage temperature: -22F to 158F (-30C to 70C)
  • Shockproof: multiple drops from 5' (1.5 m) onto concrete
  • Designed to meet MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock

Ports
  • COM1, RS-232C 9-pin D connector with 5VDC power output on pin 9 software-enabled
  • USB host (Full A), USB client (Micro B)
  • 12, 24VDC input, 10-36V unregulated
  • 3.5 mm audio jack, supports speaker/ microphone or stereo output (pin detect)
  • I/O module OEM configurable/customizable


Memory & Data Storage
  • 2GB RAM
  • 16GB flash storage
  • User-accessible micro SD/SDXC slot

Wireless Connectivity Options
  • Bluetooth® wireless technology, 4.2 BR/BDR/BLE "Smart Ready," Class 1.5, range greater than 100 feet (30 m)
  • Wi-Fi® 802.11b/g/n 2.4GHz with extended range

Camera
  • 5MP resolution with autofocus and LED Illuminator + video capture
  • Embed photo with date, time, and GPS position


GPS/GNSS (Geo Models)
  • High-sensitivity GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS receiver
  • User settings for enhanced performance under canopy
  • Accuracy: SBAS 2 meters; autonomous 5 meters
  • Concurrent GNSS constellation resolution
  • NMEA-0183 ver. 4.0 output
  • 72-channel u-blox M8 engine

Certifications & Standards
  • FCC Class B
  • CE Marking (applicable EMC, R&TTE, and LVD directives)
  • Industry Canada
  • EN60950 Safety
  • Optional Class I, II, III Division 2 for hazardous locations
