The Carlson Scan2K bridges the gap between small, light-weight, short-range sensors and large, long-range, pulsed time-of-flight scanners. Built with surveyors in mind, the Carlson Scan2K has a user-friendly on-board operator interface with menu-driven operations for quickly collecting and referencing data.

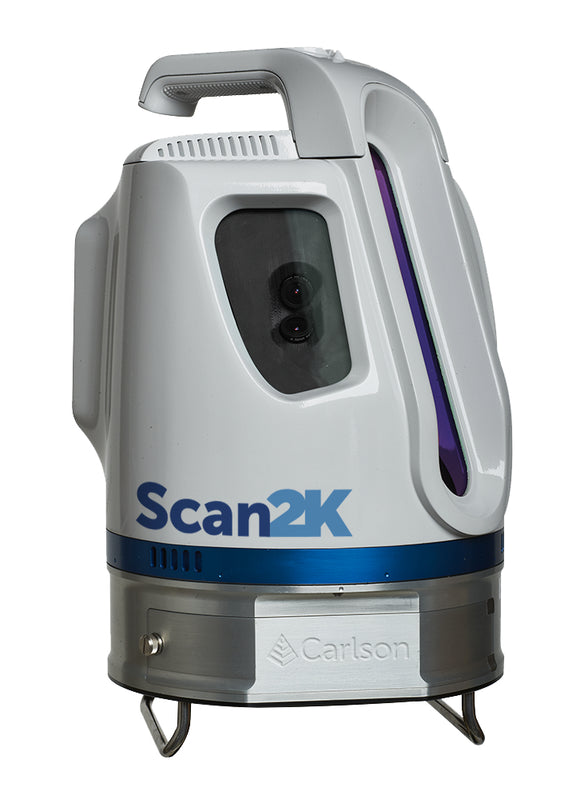

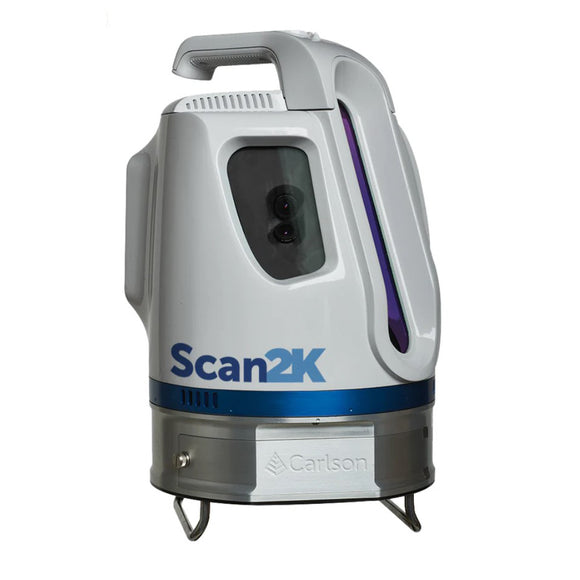

Carlson Scan2K Lidar Sensor
-
Class 1 infrared laser
-
Built-in control panel via touch-screen graphical user interface
-
On-board memory 250Gb
-
50 kHz, 200 kHz & 500kHz measurement rates
-
60° Horizontal x 120° Vertical FOV
-
Single scanning mirror with programmable vertical field-of-view
-
Internal Camera Package - Consists of two integrated, calibrated
5mp cameras that cover the 120° FOV of the scanner
-
Sensors Package - Includes on board L1 GPS, compass and
inclinometer for rapid georeferencing
Carlson Scan750 Lidar Sensor
- Class 1 infrared laser
-
Built-in control panel via touch-screen graphical user interface
-
On-board memory 250Gb
-
200 kHz & 500kHz measurement rates
-
360° Horizontal x 120° Vertical FOV
-
Single scanning mirror with programmable vertical field-of-view
-
Internal Camera Package - Consists of two integrated, calibrated
5mp cameras that cover the 120° FOV of the scanner
-
Sensors Package - Includes on board L1 GPS, compass and
inclinometer for rapid georeferencing
