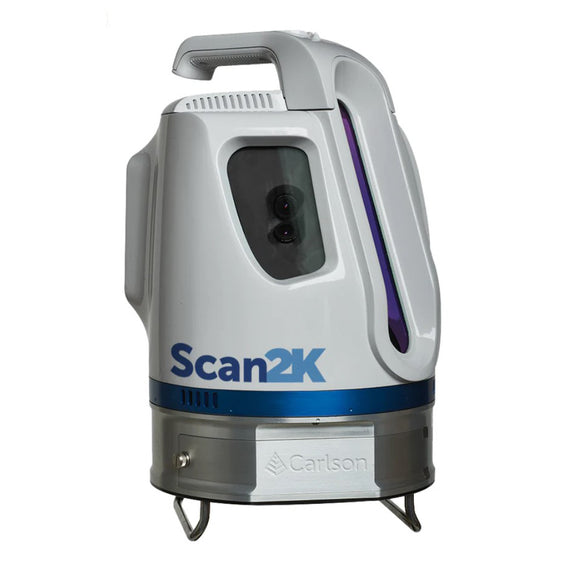

Carlson Scan2K

Carlson Scan2K

$0.00
$0.00
Sale Sold out
Title

The Carlson Scan2K bridges the gap between small, light-weight, short-range sensors and large, long-range, pulsed time-of-flight scanners. Built with surveyors in mind, the Carlson Scan2K has a user-friendly on-board operator interface with menu-driven operations for quickly collecting and referencing data.



Carlson Scan2K Lidar Sensor

  • Class 1 infrared laser

  • Built-in control panel via touch-screen graphical user interface

  • On-board memory 250Gb

  • 50 kHz, 200 kHz & 500kHz measurement rates

  • 60° Horizontal x 120° Vertical FOV

  • Single scanning mirror with programmable vertical field-of-view

  • Internal Camera Package - Consists of two integrated, calibrated

    5mp cameras that cover the 120° FOV of the scanner

  • Sensors Package - Includes on board L1 GPS, compass and

    inclinometer for rapid georeferencing



Carlson Scan750 Lidar Sensor

  • Class 1 infrared laser

  • Built-in control panel via touch-screen graphical user interface

  • On-board memory 250Gb

  • 200 kHz & 500kHz measurement rates

  • 360° Horizontal x 120° Vertical FOV

  • Single scanning mirror with programmable vertical field-of-view

  • Internal Camera Package - Consists of two integrated, calibrated

    5mp cameras that cover the 120° FOV of the scanner

  • Sensors Package - Includes on board L1 GPS, compass and

    inclinometer for rapid georeferencing
